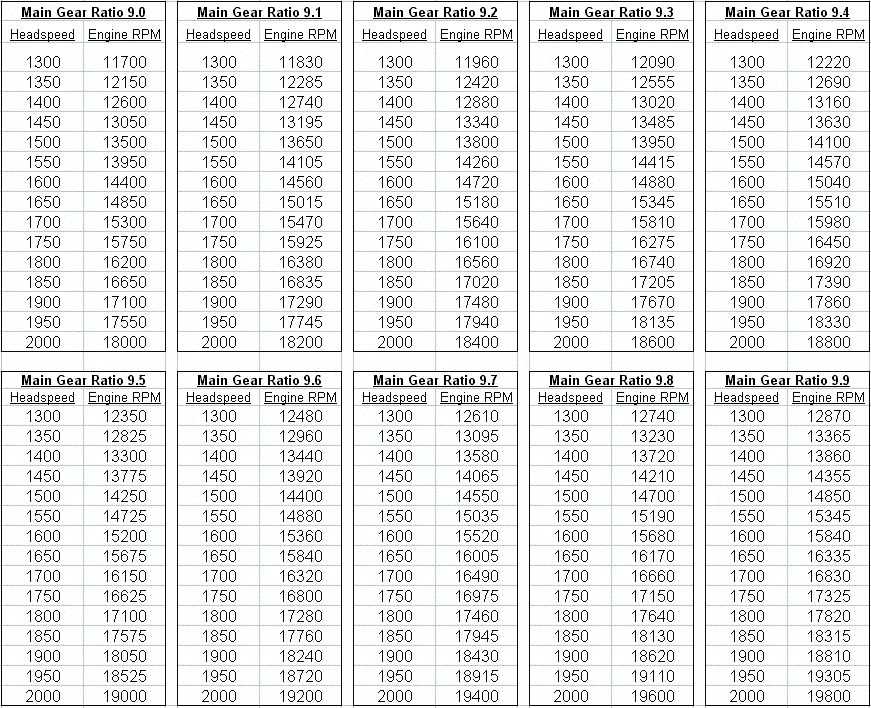

Ratio not listed? Use the formulas
below to compute your's.
You do have a computer, don't you??
|
Headspeed = RPM ÷ Gear Ratio |
| RPM = Headspeed x Gear Ratio |
| Gear Ratio = RPM ÷ Headspeed |
| Gear Ratio: #teeth on main gear ÷ #teeth on pinion gear |
|
Example 1: to find the engine RPM at a headspeed of 1600 on an XL Gasser |
| Main gear 90t, Pinion gear 14t 90/14 = 6.428 = 6.43 for practical purposes |
| RPM = 1600 (Headspeed) x 6.43 (Ratio) = 10,288 engine rpm |
|
|
| Example 2: to find the headspeed when your engine is turning 11,000rpm |
| Headspeed = 11,000 (RPM)/6.43 (Ratio) = 1711 headspeed |
